Thermodynamic Steam Traps are usually located on main steam distribution lines to remove condensate from steam line. The basic principle used here is Bernoulli Principle; trap is working on pressure difference of Steam & Condensate,as the pressure & velocity of fluid changes due to inlet steam & condensate,therefore disc moves upward & downward to open & close trap & trap discharges condensate instantly. Here the disc is only moving part in assembly. Thermodynamic Steam Traps are simple & compact in construction.

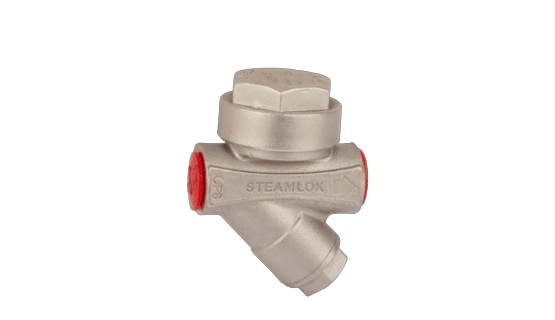

THERMODYNAMIC TRAP - SLTT 76
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | SS 304 | 48.9 bar(g) |
538°C |
Screwed, Socket Weld ASA 150 / ASA 300 / ASA 600 |

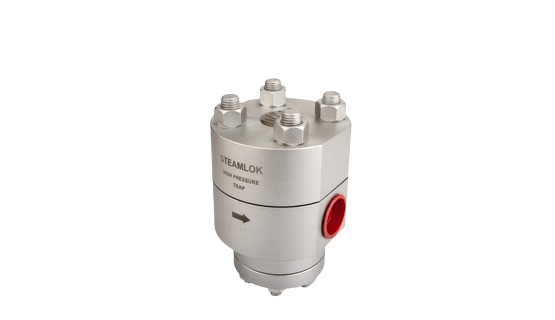

THERMODYNAMIC TRAP - SLTT 87/88
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | F22 F91 |
100 bar(g) 124.9 bar(g) |
540°C 550°C |
Socket Weld, Butt Weld ASA 600 / ASA 1500 |

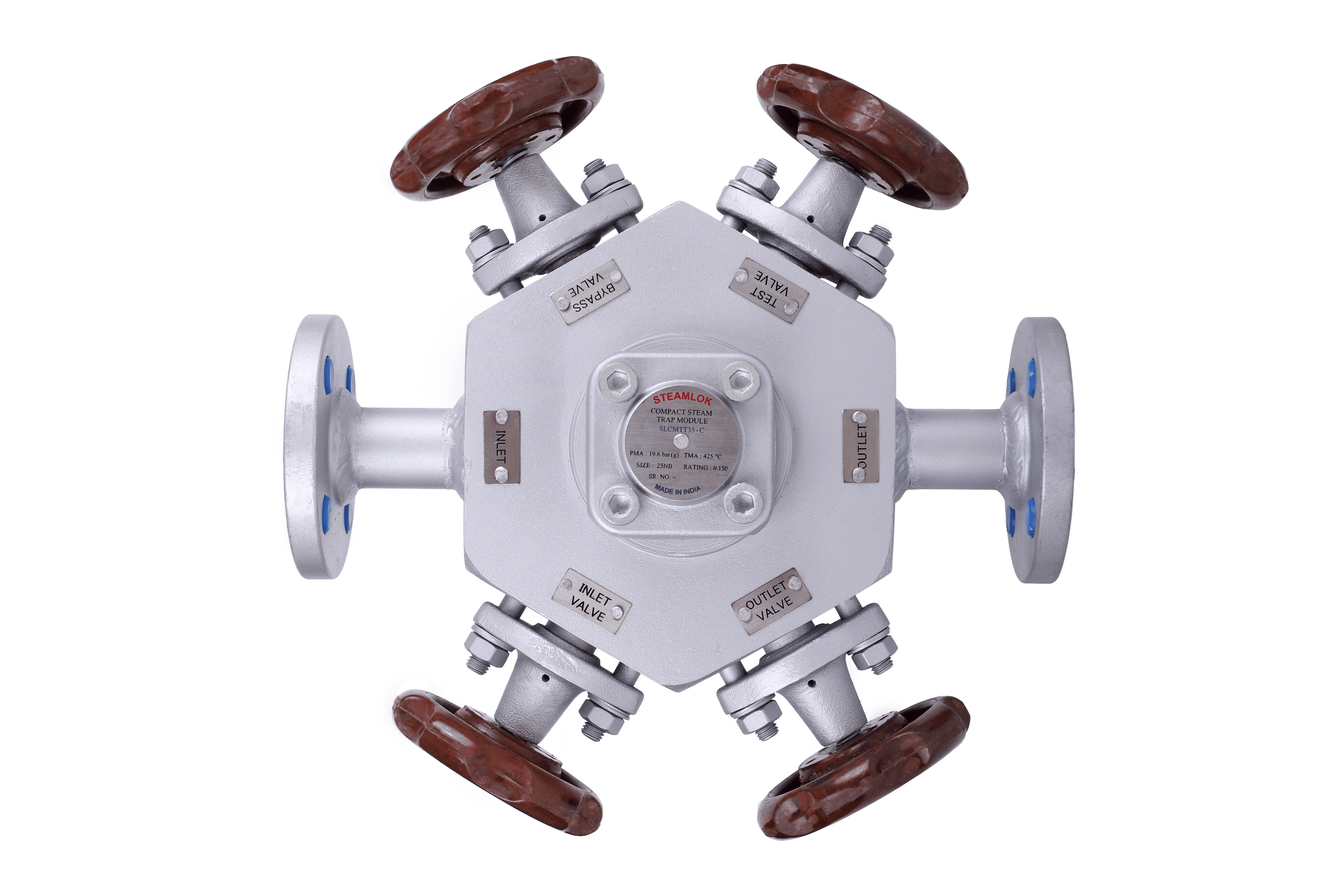

THERMODYNAMIC COMPACT STEAM TRAP MODULE - SLCMTT35-C (15NB, 20NB, 25NB)
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | A105 | 76.6 bar(g) 10.5 bar(g) 29.3 bar(g) |
425°C 250°C 250°C |
Socket Weld ASA 150 / ASA 300 |

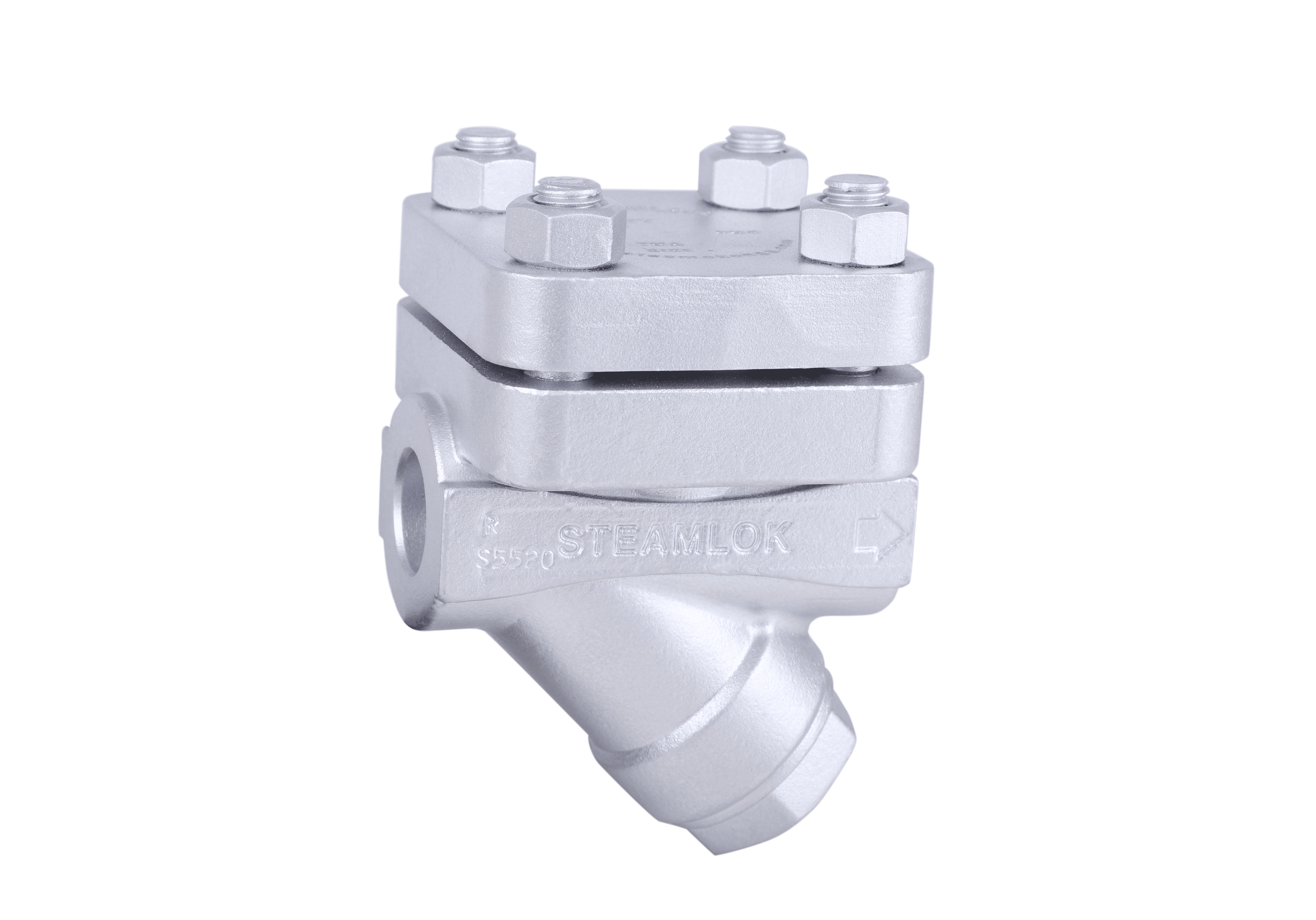

THERMODYNAMIC STEAM TRAP - SLTT 85
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20 | A105 | 65 bar(g) |
510°C |
Socket Weld, Butt Weld ASA 600 / ASA 1500 |
A ball float steam trap is a product used on steam process line to remove condensate formed during process. Condensate is nothing but hot water formed during heating process when steam loses its heat energy. The basic working of ball float trap is on buoyancy principle that it is working on densities difference of water & steam. Ball float trap is must to remove condensate as and when it form to maintain process temperature. Function of a ball float steam trap is to trap (hold) steam & allow condensate to go out from trap. It continuously discharges moderate & high amount of condensate load through steam process lines.

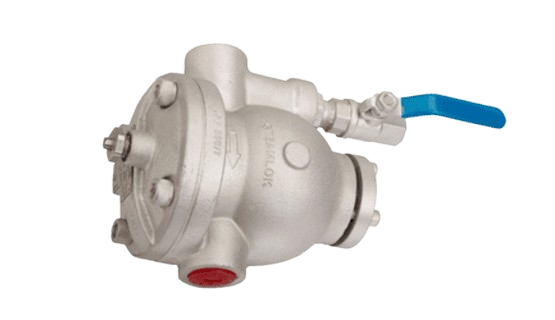

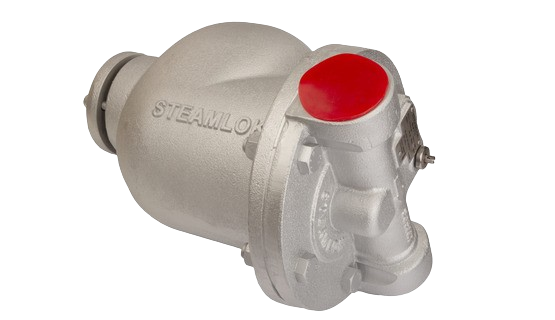

BALL FLOAT TRAP - SLFT 75 (15NB, 20NB, 25NB)
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | SG Iron | 16 bar(g) at 100°C |
200°C |
Screwed : BSP, BSPT, NPT Flanged |
BALL FLOAT TRAP - SLFT 75 (40NB, 50NB)
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 40, 50 | SG Iron | 16 bar(g) at 100°C |
200°C |
Screwed Flanged |

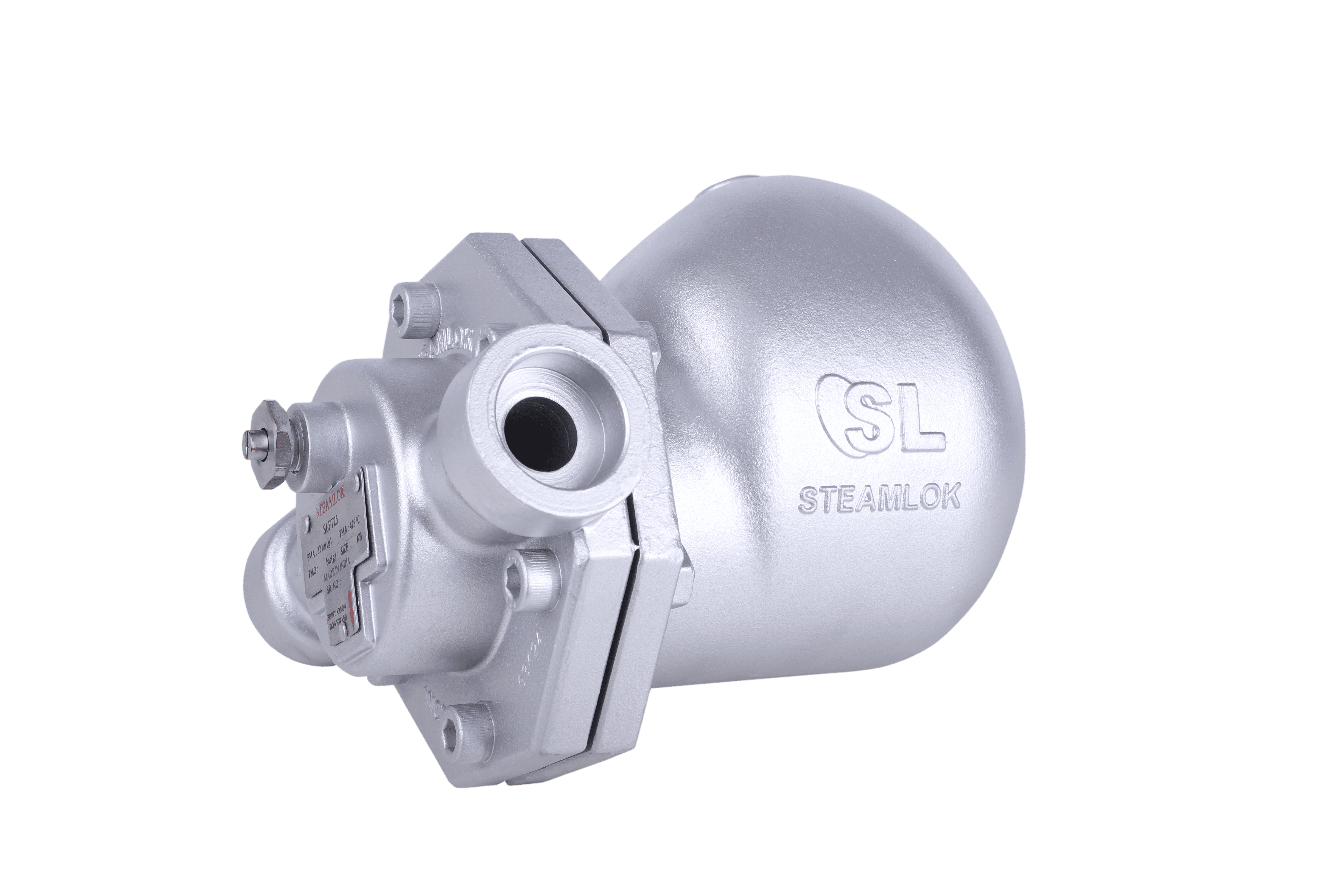

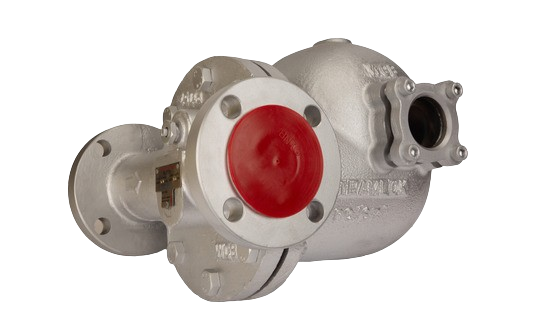

BALL FLOAT TRAP - SLFT 25 (15NB, 20NB, 25NB)
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | Cast Steel (WCB) | 51 bar(g) | 425°C |
Screwed Flanged Socket Weld |
BALL FLOAT TRAP - SLFT 25 (40NB, 50NB)
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 40, 50 | Cast Steel (WCB) | 51 bar(g) | 425°C |
Screwed Flanged |

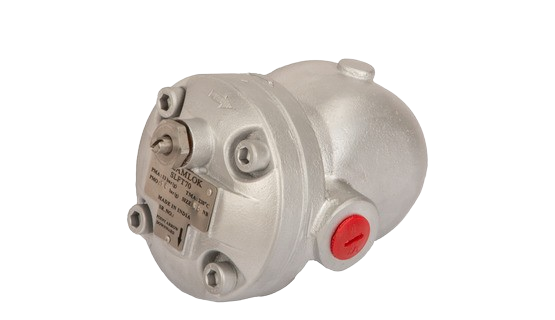

ECO FT-70
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | Cast Iron | 13 bar(g) |
200°C |
Screwed Flanged |

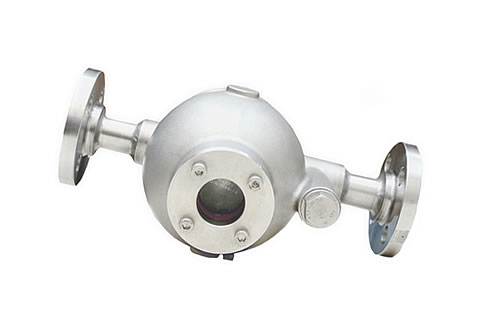

BALL FLOAT STEAM TRAP - SLFT 76 (15NB, 20NB, 25NB)
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | CF8 | 41 bar(g) |
538°C |
Screwed Flanged |

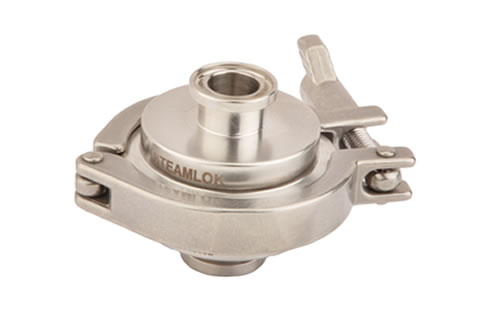

THERMOSTATIC PHARMA TRAP - SLSST 79
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20, 25 | SS316L | 10 bar(g) |
176°C |
ASME BPE-Tri Clamp Tube Weld |

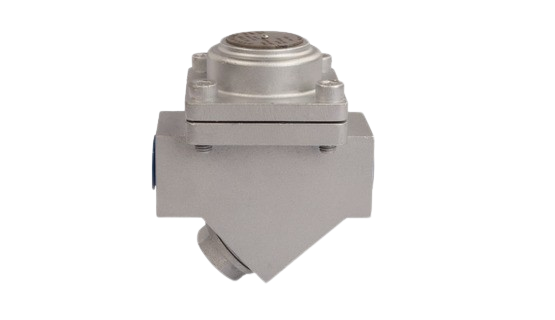

THERMOSTATIC STEAM TRAP - SLTST 35
| SIZE(NB) | MOC | PMA | TMA | END CONNECTION |
|---|---|---|---|---|
| 15, 20 | A105 | 51 bar(g) |
425°C |
Socket Weld, Butt Weld ASA 600 / ASA 1500 |

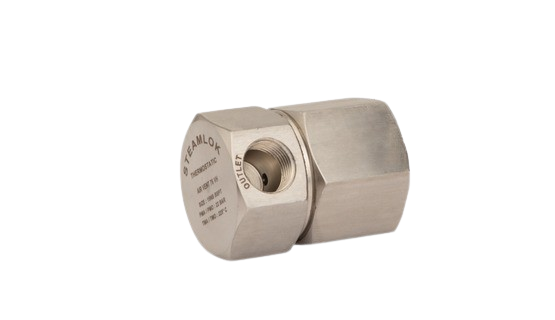

THERMOSTATIC AIR VENT - SLAVT 76 VH
| SIZE(NB) | PMA | TMA | END CONNECTION |
|---|---|---|---|
| 15, 20 | 49 bar(g) | 538°C |
BSP BSPT NPT |
